Product Index

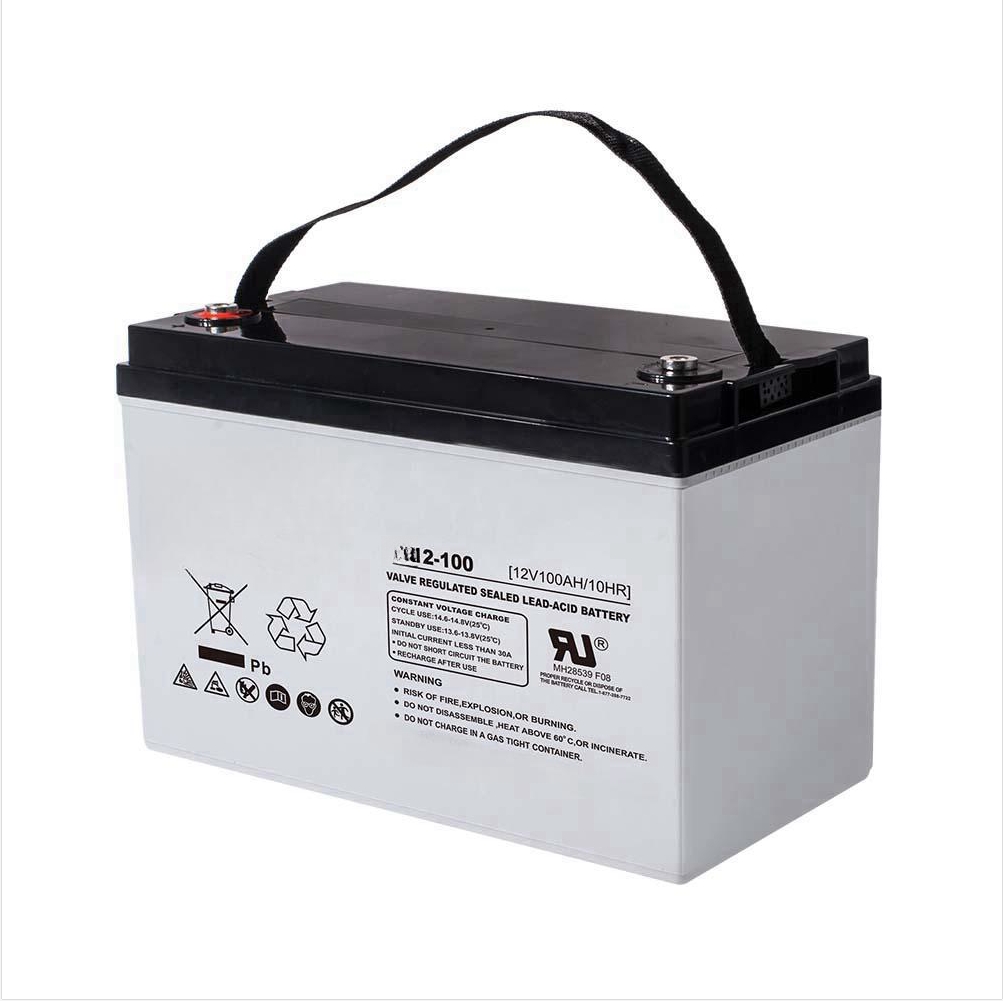

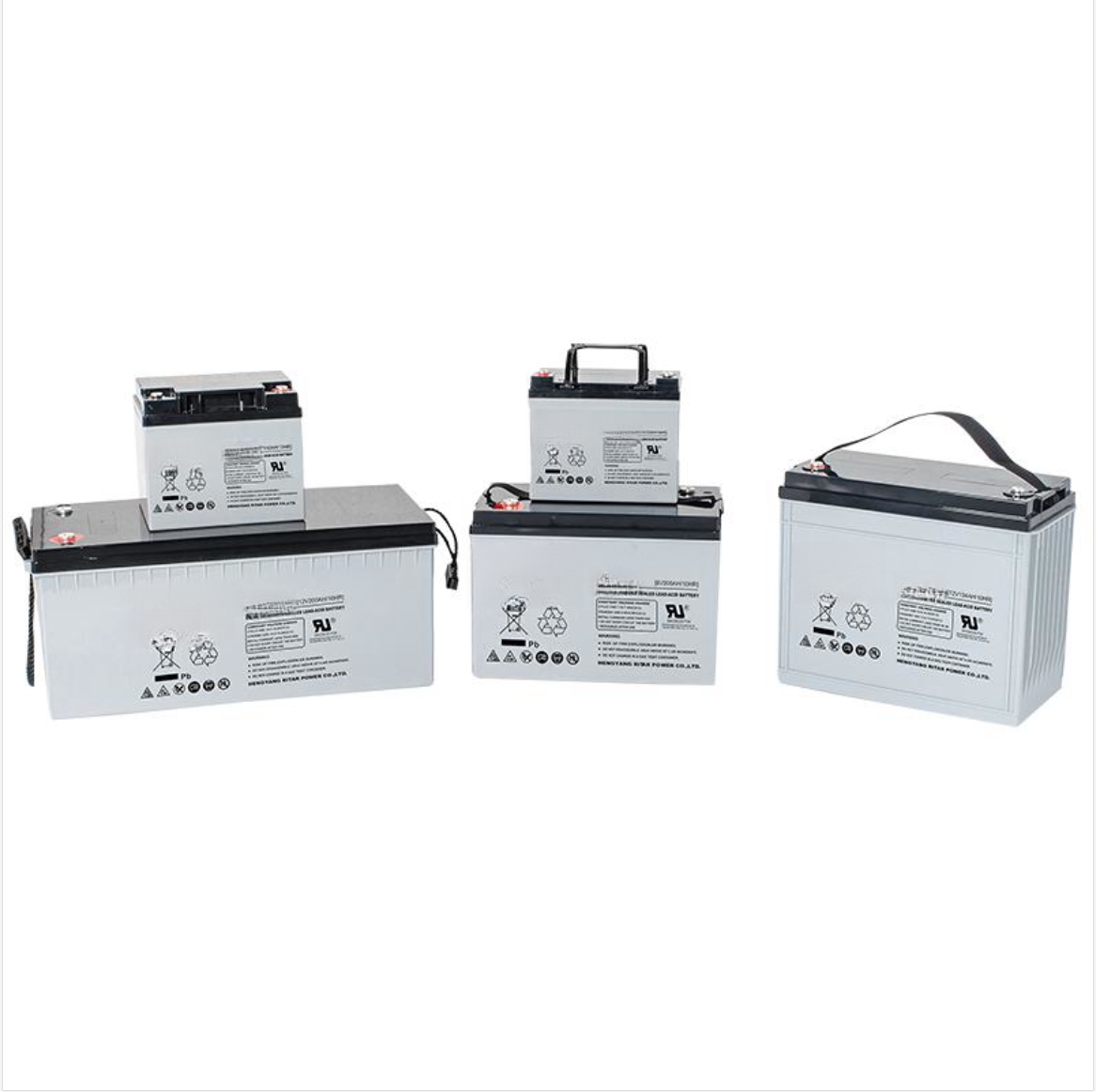

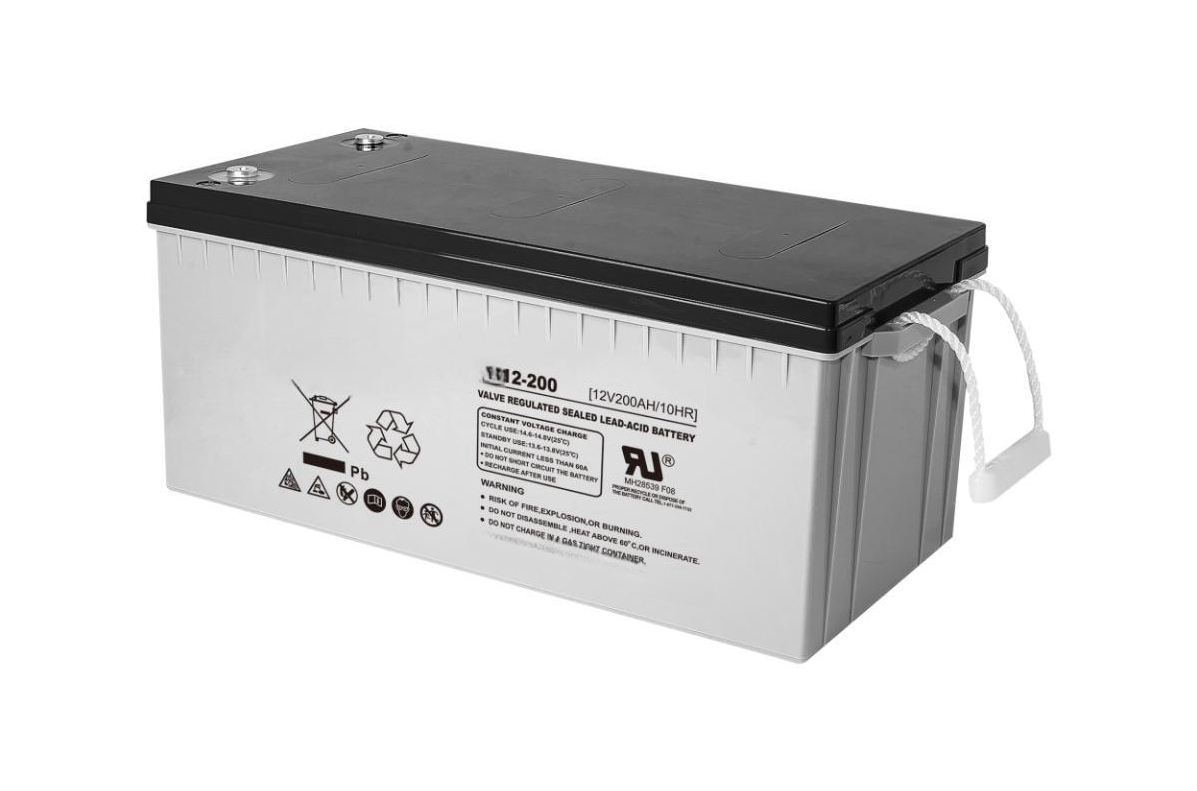

AGM VRLA Batteries
That general purpose battery with 12 years design life in float service. It meets with IEC, JIS and BS standards .With up-dated AGM valve regulated technology and high purity raw materials, the RA series battery maintains high consistency for better performance and reliable standby service life. It is suitable for UPS/EPS, medical equipment, emergency light and security system applications
Product Details
Voltage class: 6V/12V
Capacity range: 33Ah~260Ah
Long design life
Low self-discharge rate
Good high rate discharge performance
Wide operation temperature range
Application: telecom systems, fire & alarm systems, emergency systems, power tools, medical equipment, UPS/EPS, solar inverters/controllers, etc.
This series is a general purpose battery with 12 years design life in float service. It meets with IEC, JIS and BS standards .With up-dated AGM valve regulated technology and high purity raw materials, the RA series battery maintains high consistency for better performance and reliable standby service life.
It is suitable for UPS/EPS, medical equipment, emergency light and security system applications.
| Model | Nominal Voltage | Capacity | Dimension | Terminal | |||||||
| C10/1.80VPC（Ah） | Length | Width | Height | Total Height | |||||||
| （V） | mm | inch | mm | inch | mm | inch | mm | inch | |||
| LJ6-100 | 6 | 100 | 194 | 7.64 | 170 | 6.69 | 205 | 8.07 | 212 | 8.35 | F14(M8) |
| LJ6-150 | 6 | 150 | 260 | 10.24 | 180 | 7.09 | 245 | 9.65 | 252 | 9.92 | F12(M8) |
| LJ6-180 | 6 | 180 | 306 | 12.05 | 168 | 6.61 | 220 | 8.66 | 227 | 8.94 | F12(M8) |
| LJ6-200 | 6 | 200 | 322 | 12.68 | 177.5 | 6.99 | 226 | 8.90 | 231 | 9.09 | F16(M8) / F14(M8) |
| LJ6-200S | 6 | 200 | 260 | 10.24 | 180 | 7.09 | 245 | 9.65 | 252 | 9.92 | F12(M8) |
| LJ6-225 | 6 | 225 | 322 | 12.68 | 177.5 | 6.99 | 226 | 8.90 | 231 | 9.09 | F16(M8) / F14(M8) |
| LJ12-33 | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.10 | 168 | 6.61 | F7(M8) / F11(M6) |
| LJ12-33A | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.10 | 168 | 6.61 | F7(M8) / F11(M6) |
| LJ12-35 | 12 | 35 | 195 | 7.68 | 130 | 5.12 | 155 | 6.10 | 168 | 6.61 | F7(M8) / F11(M6) |
| LJ12-40 | 12 | 40 | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-45 | 12 | 45 | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-55 | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 211 | 8.31 | 216 | 8.50 | F15(M6) / F11(M6) |
| LJ12-65 | 12 | 65 | 350 | 13.78 | 167 | 6.57 | 182 | 7.17 | 182 | 7.17 | F5(M8) / F11(M6) |
| LJ12-70 | 12 | 70 | 350 | 13.78 | 167 | 6.57 | 182 | 7.17 | 182 | 7.17 | F5(M8) / F11(M6) |
| LJ12-70S | 12 | 70 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 216 | 8.50 | F15(M6) / F11(M6) |
| LJ12-80S | 12 | 80 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 216 | 8.50 | F15(M6) / F11(M6) |
| LJ12-80 | 12 | 80 | 350 | 13.78 | 167 | 6.57 | 182 | 7.17 | 182 | 7.17 | F5(M8) / F11(M6) |
| LJ12-100S | 12 | 100 | 306.5 | 12.07 | 168.5 | 6.63 | 210 | 8.27 | 215 | 8.46 | F15(M6) / F12(M8) |
| LJ12-100 | 12 | 100 | 328 | 12.91 | 172 | 6.77 | 215 | 8.46 | 220 | 8.66 | F5(M8) / F12(M8) |
| LJ12-120 | 12 | 120 | 407 | 16.02 | 177 | 6.97 | 225 | 8.86 | 225 | 8.86 | F5(M8) / F12(M8) |
| LJ12-120S | 12 | 110 | 328 | 12.91 | 172 | 6.77 | 215 | 8.46 | 220 | 8.66 | F12(M8) |
| LJ12-134 | 12 | 134 | 340 | 13.39 | 173 | 6.81 | 280 | 11.02 | 287 | 11.30 | F5(M8) / F12(M8) |
LJ12-145 | 12 | 145 | 340 | 13.39 | 173 | 6.81 | 280 | 11.02 | 287 | 11.30 | F5(M8) / F12(M8) |
| LJ12-150 | 12 | 150 | 483 | 19.02 | 170 | 6.69 | 241 | 9.49 | 242 | 9.53 | F5(M8) / F12(M8) |
| LJ12-160 | 12 | 160 | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-180 | 12 | 180 | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-200 | 12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 224 | 8.82 | F16(M8) / F10(M8) |
| LJ12-225 | 12 | 225 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 224 | 8.82 | F16(M8) / F10(M8) |
| LJ12-230 | 12 | 230 | 521 | 20.51 | 269 | 10.59 | 204 | 8.03 | 209 | 8.23 | F10(M8) |
| LJ12-240 | 12 | 240 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 224 | 8.82 | F16(M8) / F10(M8) |
| LJ12-260 | 12 | 260 | 521 | 20.51 | 268 | 10.55 | 220 | 8.66 | 225 | 8.86 | F14(M8) |
Related Products
OPzV Solid-state Lead Battery VRLA Tubular Gel Battery
OPzV Solid-state Lead Battery (VRLA Tubular Gel Battery ) is a new battery technology based on traditional lead-acid battery, which has been improved through technology research and development and countless practices. OPzV uses gas-phase nano silica as electrolyte to replace the sulfuric acid electrolyte of traditional lead-acid battery to form colloidal medium and then solidify. It not only ensures excellent conductivity, but also completely eliminates the leakage and volatilization of electrolyte, so as to prolong the service life of the battery and reduce the maintenance cost. The Battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material. OPzV series exceeds DIN standard values with 20~25 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions.

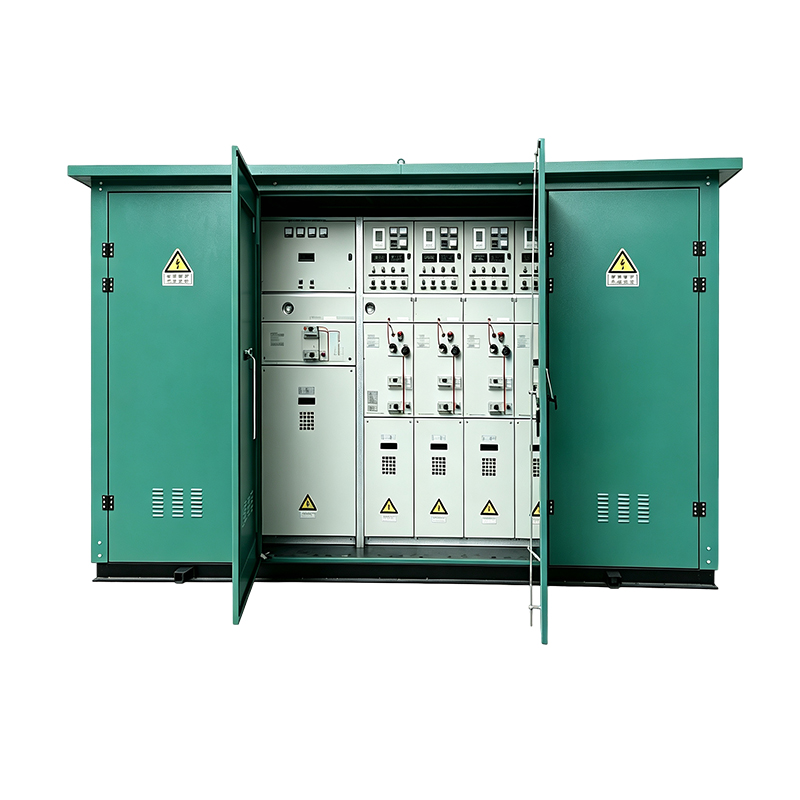

Outdoor Ring Main Unit
HCXGW-12 Outdoor High-Voltage Ring Main Unit

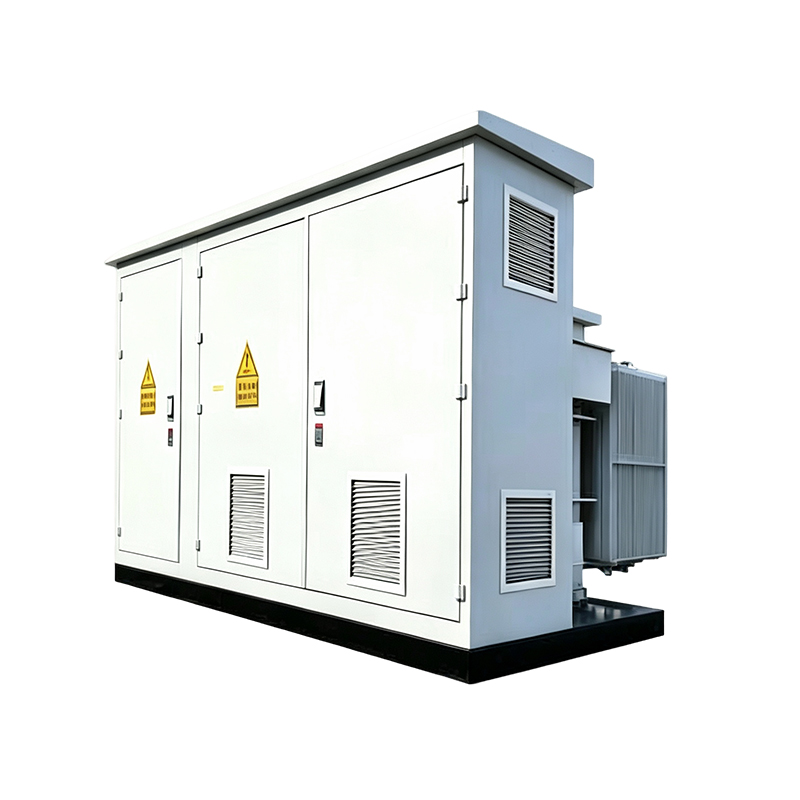

Special Box‑type Transformer For Renewable Energy Power Generation
