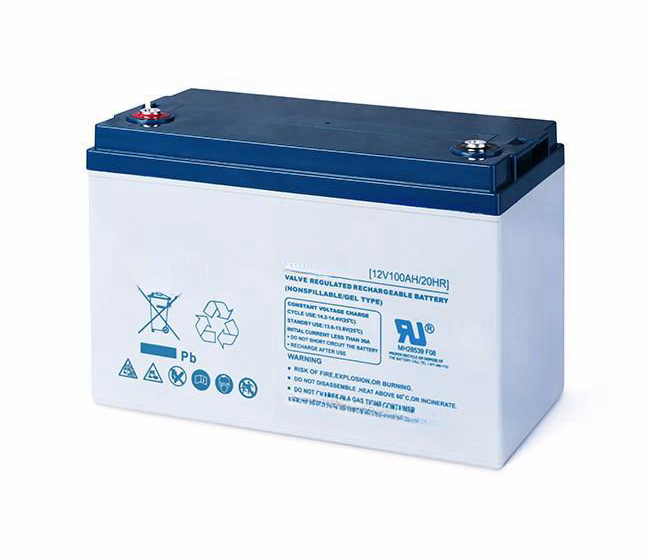

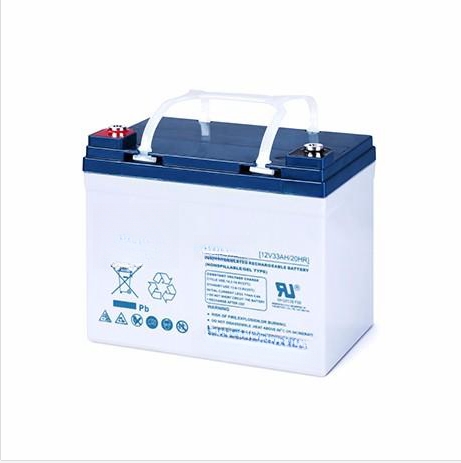

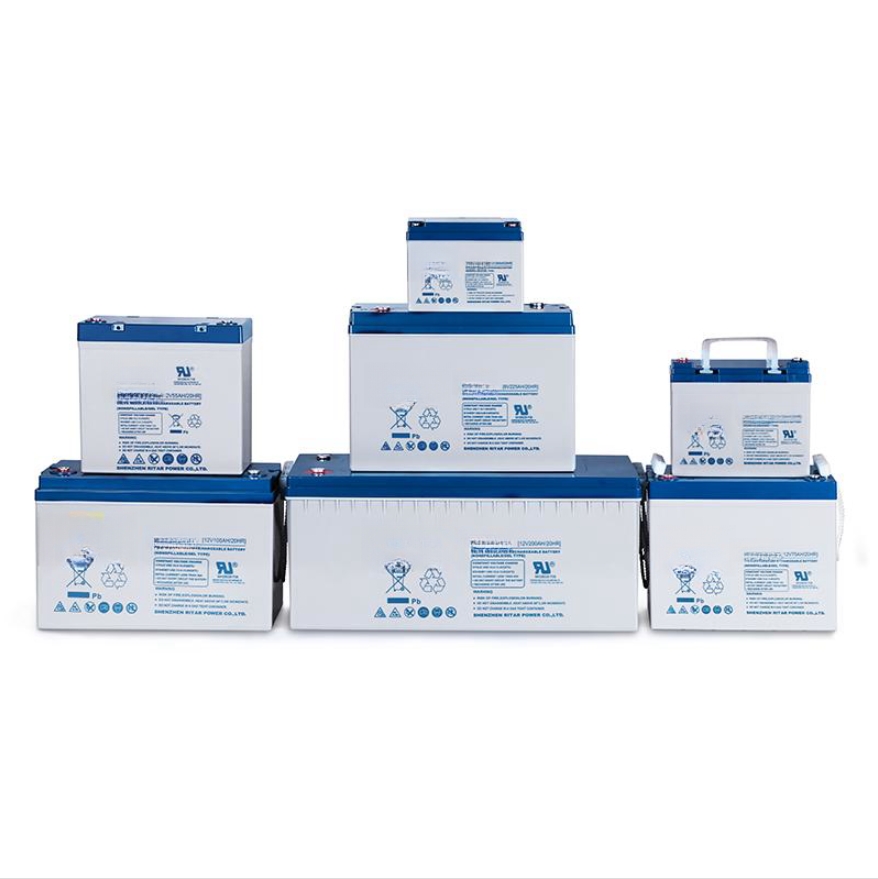

Deep Cycle GEL VRLA Batteries
Deep Cycle GEL series is pure GEL battery with 15~20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments.By using strong grids, high purity lead and patented Gel electrolyte, the DGseries offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 400 cycles at 100% DOD. Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.
Product Details
Deep Cycle GEL series is pure GEL battery with 15~20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments.By using strong grids, high purity lead and patented Gel electrolyte, the DGseries offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 400 cycles at 100% DOD. Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.
| Model | Nominal Voltage | Capacity | Dimension | Terminal | ||||||||
| （Ah） | Length | Width | Height | Total Height | ||||||||
| （V） | mm | inch | mm | inch | mm | inch | mm | inch | ||||
| LJ12-26 | 12 | 26 | C20/1.75VPC | 166 | 6.54 | 176 | 6.93 | 125 | 4.92 | 125 | 4.92 | F3(M5) / F13-BP(M5)/T24(M5) |
LJ6-100 | 6 | 100 | C20/1.75VPC | 194 | 7.64 | 170 | 6.69 | 205 | 8.07 | 212 | 8.35 | F14(M8) |
| LJ6-150 | 6 | 150 | C20/1.75VPC | 260 | 10.24 | 180 | 7.09 | 245 | 9.65 | 252 | 9.92 | F12(M8) |
| LJ6-180 | 6 | 180 | C20/1.75VPC | 306 | 12.05 | 168 | 6.61 | 220 | 8.66 | 227 | 8.94 | F12(M8) |
| LJ6-200 | 6 | 200 | C20/1.75VPC | 322 | 12.68 | 177.5 | 6.99 | 226 | 8.90 | 231 | 9.09 | F16(M8) / F14(M8) |
| LJ6-225 | 6 | 225 | C20/1.75VPC | 322 | 12.68 | 177.5 | 6.99 | 226 | 8.90 | 231 | 9.09 | F16(M8) / F14(M8) |
| LJ6-280 | 6 | 280 | C20/1.75VPC | 295 | 11.61 | 178 | 7.01 | 346 | 13.62 | 351 | 13.82 | F14(M8) |
| LJ6-310 | 6 | 310 | C20/1.75VPC | 295 | 11.61 | 178 | 7.01 | 346 | 13.62 | 351 | 13.82 | F14(M8) |
| LJ6-335 | 6 | 335 | C20/1.75VPC | 295 | 11.61 | 178 | 7.01 | 346 | 13.62 | 351 | 13.82 | F14(M8) |
| LJ12-33 | 12 | 33 | C20/1.75VPC | 195 | 7.68 | 130 | 5.12 | 155 | 6.10 | 168 | 6.61 | F7(M8) / F11(M6) |
| LJ12-40 | 12 | 40 | C20/1.75VPC | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-55 | 12 | 55 | C20/1.75VPC | 229 | 9.02 | 138 | 5.43 | 211 | 8.31 | 216 | 8.50 | F15(M6) / F11(M6) |
| LJ12-65 | 12 | 65 | C20/1.75VPC | 350 | 13.78 | 167 | 6.57 | 182 | 7.17 | 182 | 7.17 | F5(M8) / F11(M6) |
| LJ12-75 | 12 | 75 | C20/1.75VPC | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 216 | 8.50 | F15(M6) / F11(M6) |
| LJ12-100S | 12 | 90 | C20/1.75VPC | 306.5 | 12.07 | 168.5 | 6.63 | 210 | 8.27 | 215 | 8.46 | F15(M6) / F12(M8) |
| LJ12-100 | 12 | 100 | C20/1.75VPC | 328 | 12.91 | 172 | 6.77 | 215 | 8.46 | 220 | 8.66 | F5(M8) / F12(M8) |
| LJ12-120 | 12 | 120 | C20/1.75VPC | 407 | 16.02 | 177 | 6.97 | 225 | 8.86 | 225 | 8.86 | F5(M8) / F12(M8) |
| LJ12-134 | 12 | 134 | C20/1.75VPC | 340 | 13.39 | 173 | 6.81 | 280 | 11.02 | 287 | 11.30 | F5(M8) / F12(M8) |
| LJ12-145 | 12 | 145 | C20/1.75VPC | 340 | 13.39 | 173 | 6.81 | 280 | 11.02 | 287 | 11.30 | F5(M8) / F12(M8) |
| LJ12-150 | 12 | 150 | C20/1.75VPC | 483 | 19.02 | 170 | 6.69 | 241 | 9.49 | 242 | 9.53 | F5(M8) / F12(M8) |
| LJ12-160 | 12 | 160 | C20/1.75VPC | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-180 | 12 | 180 | C20/1.75VPC | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-200 | 12 | 200 | C20/1.75VPC | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 224 | 8.82 | F16(M8) / F10(M8) |
| LJ12-225 | 12 | 225 | C20/1.75VPC | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 224 | 8.82 | F16(M8) / F10(M8) |
| LJ12-230 | 12 | 230 | C20/1.75VPC | 521 | 20.51 | 269 | 10.59 | 204 | 8.03 | 209 | 8.23 | F10(M8) |
| LJ12-260 | 12 | 260 | C20/1.75VPC | 521 | 20.51 | 268 | 10.55 | 220 | 8.66 | 225 | 8.86 | F14(M8) |
| Model | Nominal Voltage （V） | Capacity | Dimension | Terminal | ||||||||
| （Ah） | Length | Width | Height | Total Height | ||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | |||||
| LJ2-200 | 2 | 200 | C20/1.75VPC | 171 | 6.73 | 111 | 4.37 | 328 | 12.91 | 340 | 13.39 | F10(M8) |
| LJ2-250 | 2 | 250 | C20/1.75VPC | 171 | 6.73 | 111 | 4.37 | 328 | 12.91 | 340 | 13.39 | F10(M8) |
| LJ2-300 | 2 | 300 | C20/1.75VPC | 170 | 6.69 | 150 | 5.91 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-400 | 2 | 400 | C20/1.75VPC | 170 | 6.69 | 150 | 5.91 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-500 | 2 | 500 | C20/1.75VPC | 211 | 8.31 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-600 | 2 | 600 | C20/1.75VPC | 241 | 9.49 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-800 | 2 | 800 | C20/1.75VPC | 301 | 11.85 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-1000 | 2 | 1000 | C20/1.75VPC | 410 | 16.14 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-1200 | 2 | 1200 | C20/1.75VPC | 473 | 18.62 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-1500 | 2 | 1500 | C20/1.75VPC | 355 | 13.98 | 337 | 13.27 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-2000 | 2 | 2000 | C20/1.75VPC | 476 | 18.74 | 337 | 13.27 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-2500 | 2 | 2500 | C20/1.75VPC | 696 | 27.40 | 340 | 13.39 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-3000 | 2 | 3000 | C20/1.75VPC | 696 | 27.40 | 340 | 13.39 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
Related Products
Wind Turbine 550kw Horizontal Axis Electrical Controlled Wind Generator
Hot Products
5kw 10kw Wind turbines Solar Panels Andenergy Storage Battery Efficient Hybrid Power Generation Systems
Hot Products

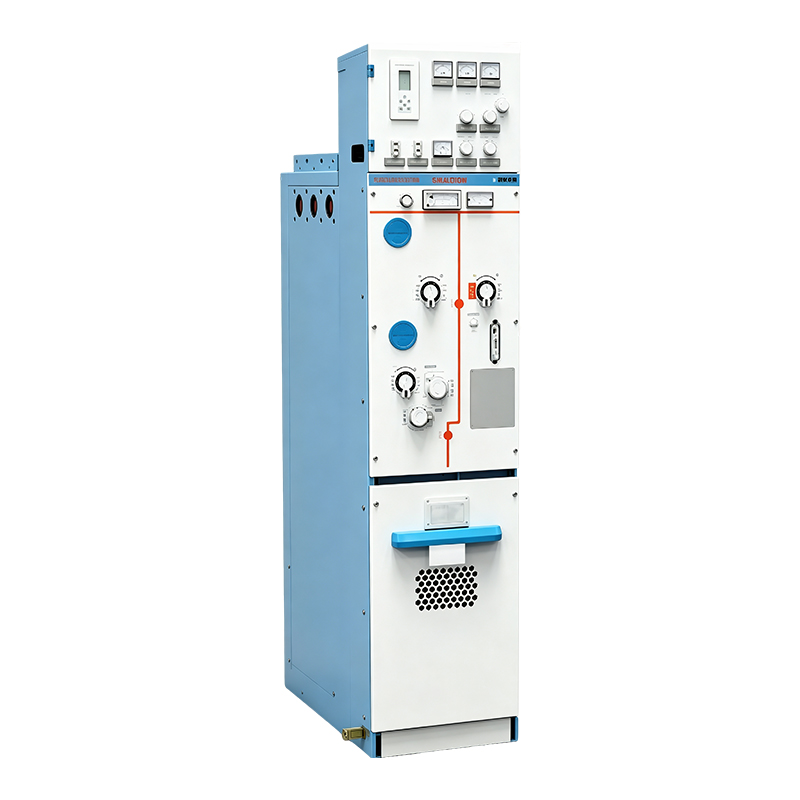

Environmental Gas‑insulated Ring Main Unit
