Product Overview

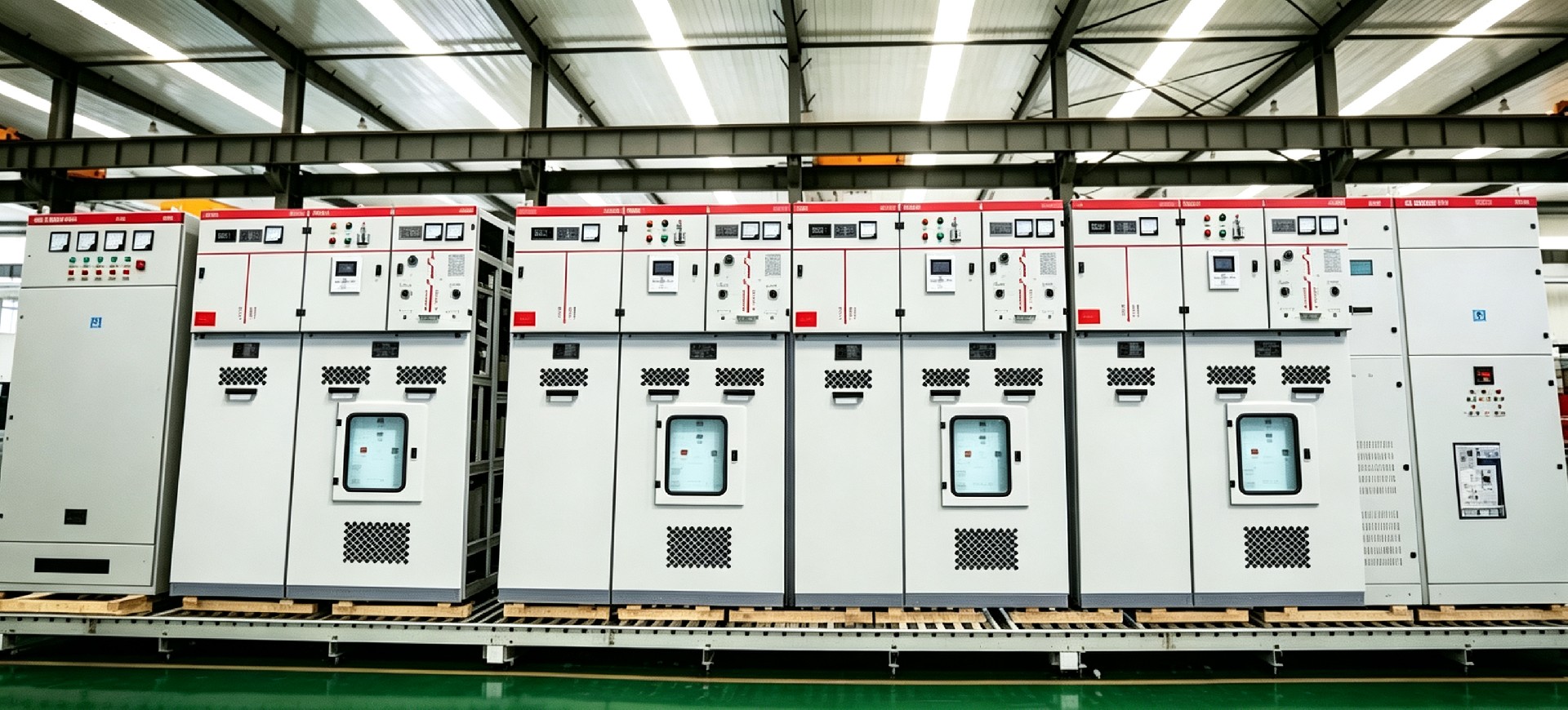

XGN15-12 modular sulfur hexafluoride AC metal-enclosed ring-network switchgear is a new generation of metal-enclosed switchgear with sulfur hexafluoride switch as the main switch and the whole cabinet using air insulation. It has the characteristics of simple structure, flexible operation, reliable interlocking and convenient installation, and can provide satisfactory technical solutions for various electric fields and different user requirements.XGN15-12 modular sulfur hexafluoride ring-network cabinet is applicable to AC 50Hz, 12kV power system, and widely used in industrial and civil power supply terminal projects. It is applicable to the following places: special places requiring automatic switching of dual power supply, power distribution in urban residential areas, small secondary substations, switching stations, industrial and mining enterprises, shopping malls, airports, subways, wind power generation, hospitals, stadiums, railways, tunnels, etc.The protection level reaches IP2X.

Product Standard

- GB3906: 3.6-40.5kV AC Metal Switchgear and Control Equipment

- GB/T11022: Common technical requirements for high-voltage switchgear and control equipment standards

Structural Features

The shell of XGN15-12 ring-network switch cabinet is made of aluminum-coated zinc sheet, galvanized sheet or cold-rolled sheet, which is formed by CNC machining, and the panel is sprayed with plastic. The switch cabinet is composed of four mutually isolated compartments: bus room, switch body, cable room, operating mechanism and control room. The pressure relief channel is set at the back of the cabinet. The cabinet structure is reasonable, compact and applicable, small in size, convenient and flexible in operation, perfect and reliable in five-prevention interlocking, simple and convenient in installation, safe and stable in operation, and expandable.
